current location:Home>Products>Manual Positioners>Translation Stages

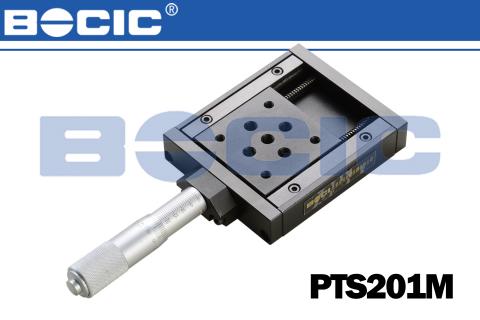

PTS200 series precision postitioning stages

    1.Actuated with V-shapedguide andlinear roller.

    2.Driven with micrometer head.

    3.Micrometers are located at the middle.

    4.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.

  • description
  • parameters

PTS200 series precision postitioning stages



1.Actuated with V-shapedguide andlinear roller.

2.Driven with micrometer head.

3.Micrometers are located at the middle.

4.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.


Related Products

      COMBINATED STAGES

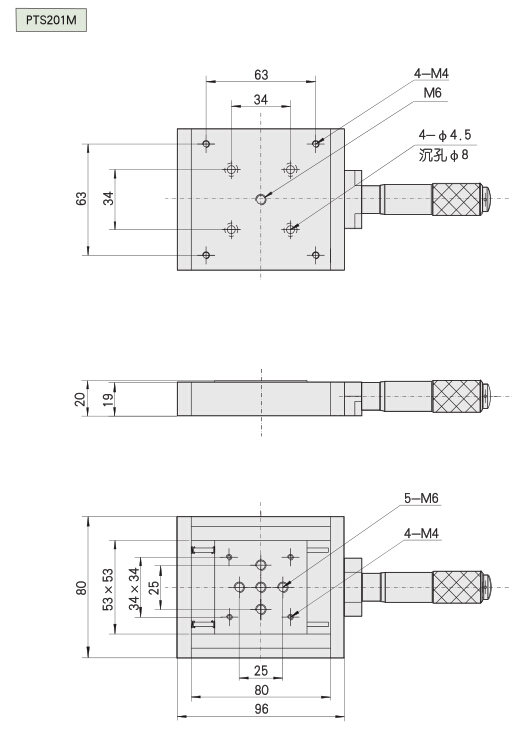

Model

PTS201M

Table size mm

53×53

Travel mm

25

Driving

Micrometer head

Graduationmm

0.01

Resolutionmm

0.002

Precisionmm

0.005

Loading capacity (kg)

5

Weight kg

0.50
