current location:Home>Products>Manual Positioners>Translation Stages

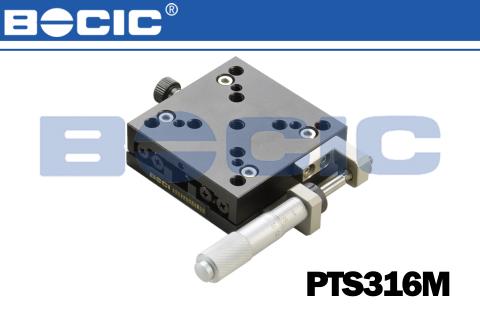

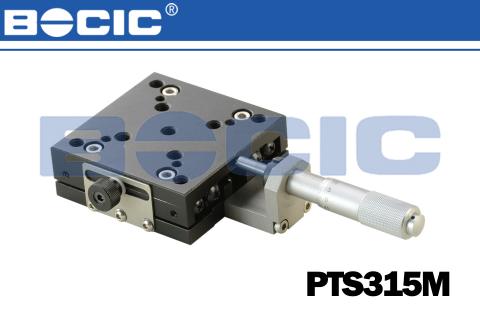

PTS310 series precision thin design postitioning stages

    1.Actuated with V-shapedguide and linear roller.

    2.High precision and large bearing capacity

    3.Thin design ,small size

    4.Micrometer headadjustment

    5.Micrometers are located at the middle.

    6.The motion can be easily locked withthe knobon the side of the stage.

    7.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.

  • description
  • parameters

PTS310 series precision thin design postitioning stages



1.Actuated with V-shapedguide and linear roller.

2.High precision and large bearing capacity

3.Thin design ,small size

4.Micrometer headadjustment

5.Micrometers are located at the middle.

6.The motion can be easily locked withthe knobon the side of the stage.

7.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.


Related Products

     COMBINATED STAGES

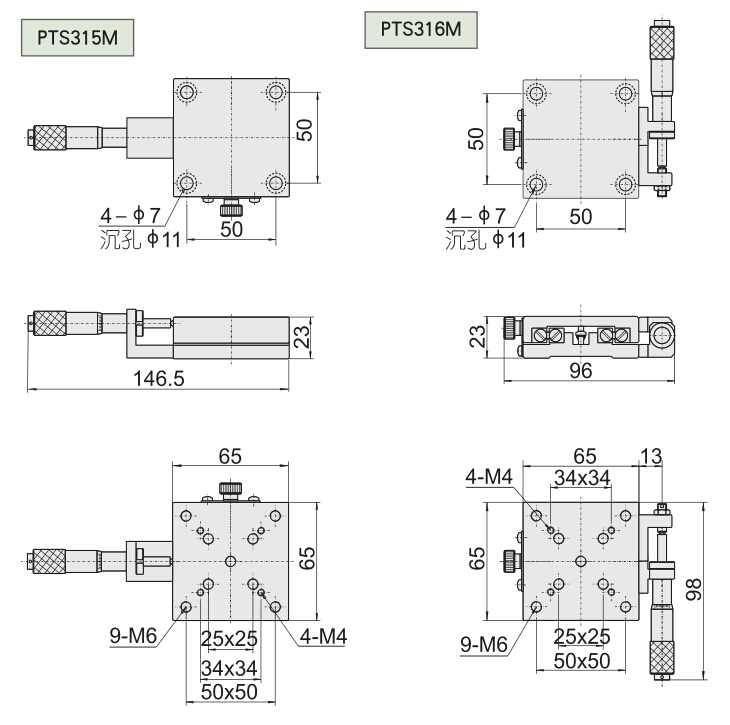

Model

PTS310M

PTS316M

Table size mm

65×65

Travel mm

25

Driving

Micrometer head

Resolutionmm

0.003

Precisionmm

0.002

Graduationmm

0.001

Drive position

middle

side

Lock handwheel

Had

Loading capacity (kg)

12

Weight kg

0.65
