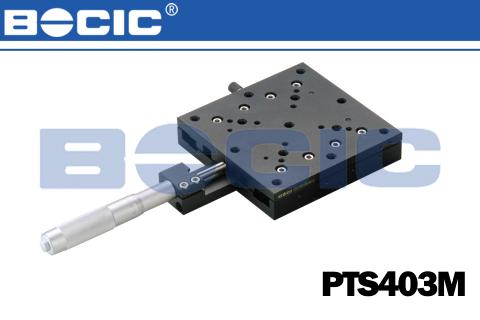

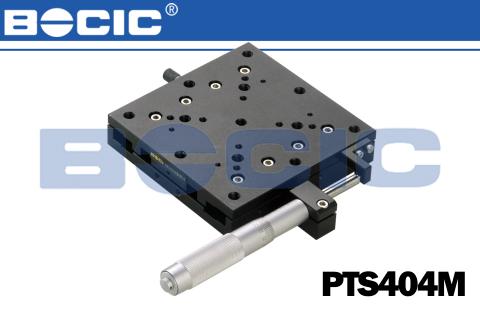

PTS403M、PTS404M Translation Stages
1.Actuated with V-shapedguide and linear roller.
2.Driven with micrometer head. Micrometer locations can be either side or middle of the stage.
3.High precision and large bearing capacity
4.The motion can be easily locked withthe knobon the side of the stage.
5.Thin design, small size
6.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.
- description
- parameters
|
Model |
PTS403M |
PTS404M |
|
Table size （mm） |
120×120 |
|
|
Travel （mm） |
50 |
|
|
Driving |
Micrometer head |
|
|
Resolution（mm） |
0.003 |
|
|
Graduation（mm） |
0.01 |
|
|
Drive position |
middle |
side |
|
Lock handwheel |
Had |
|
|
Loading capacity (kg) |
20 |
|
|
Weight （kg） |
1.3 |
|
