current location:Home>Products>Manual Positioners>Goniometric Cradles

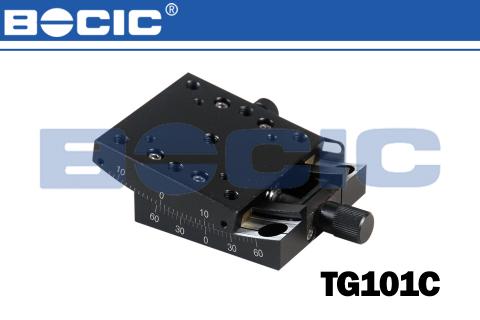

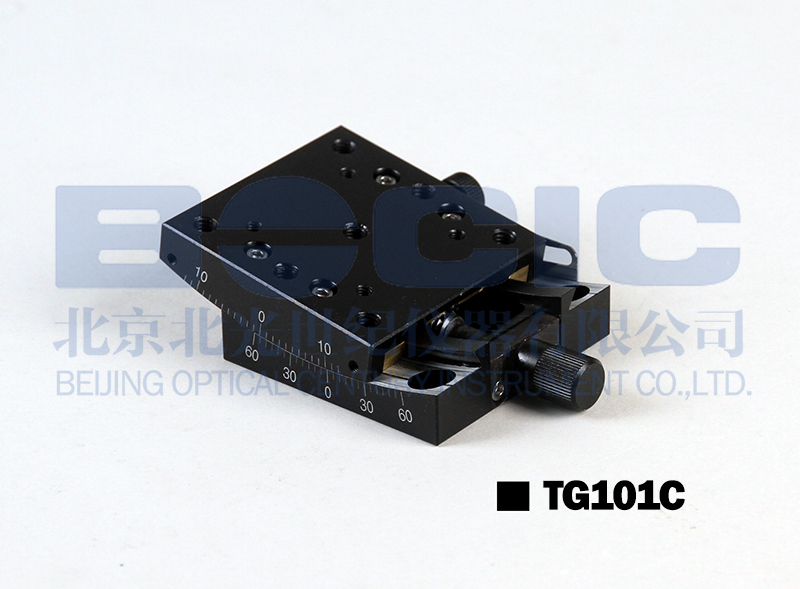

TG101C precision positioning stage

    1.High quality worm gear pair ensuresprecise and reliabletranslation.

    2.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.

    3. The stage can be paired with TG101, allowing the two stages to share the same rotation center.

  • description
  • parameters

TG101C precision positioning stage



1.High quality worm gear pair ensuresprecise and reliabletranslation.

2.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.

3. The stage can be paired with TG101, allowing the two stages to share the same rotation center.



Model

TG101C

Table size mm

65×65

Adjustment range

±10o

Minimum reading

5

Graduation

1o

Axis heightmm

100

Loading capacity (kg)

6

Weight kg

0.6
