current location:Home>Products>Motion Control>Vertical Stages

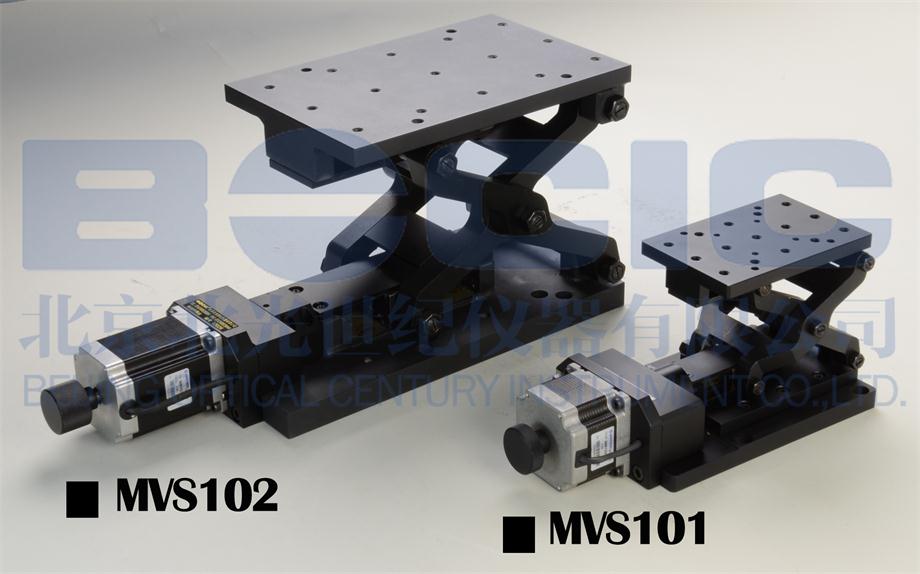

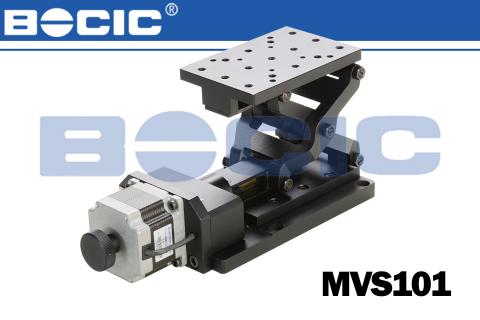

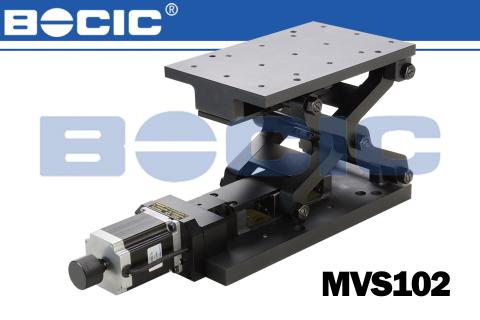

MVS100 series motorized vertical translation stages

    1.The stage adopts a scissor-type support and high precision ballscrew actuation.

    2.It ensures smooth and reliable operation with high precision and large bearing capacity.

    3.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.

  • description
  • parameters

MVS100 series motorized vertical translation stages




1.The stage adopts a scissor-type support and high precision ballscrew actuation.

2.It ensures smooth and reliable operation with high precision and large bearing capacity.

3.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.


Related Products

STEPPER MOTOR CONTROLLERS          MOTORIZED POSITIONING UNITS





Model

MVS101

MVS102

Travelmm

55

100

Table size (mm

80×120

150×230

Resolutionmm

0.01

Maximum speed (mm/s)

20

20

Resetting positioning accuracy (mm

0.02

0.03

Loading capacity(kg)

10

20

Stepper motor1.8°)

56stepper motor

Weightkg

2

12
